CASE Minotaur™ DL550 Compact Dozer Loader
Here’s a species that’s unlike any other. It’s the CASE Minotaur™ DL550. True, this beast has the silhouette of a compact track loader. But you’ll see it’s packed full of pure, rabid dozer DNA. For proof, check out the power numbers. 114 hp. More than 25,000 lbs. of drawbar pull. More than 12,000 lbs. of breakout force. And 5,500 lb. rated operating capacity (50 percent of tipping load.) With that kind of muscle, along with the integrated C-frame dozer blade, standard enhanced high-flow hydraulics and skid steer-style coupler, operators can easily switch out attachments, use larger buckets and power larger implements. There are dozer-style controls and grips, along with the ability to switch to ISO controls. An optional integrated rear ripper. Plus, three track options including 2 steel track widths. And the choice to add our ride-smoothing EZ Trac. Yeah, this one is part monster, one part amazing. Sic it on your next job.
Horsepower
114 hp | 85 kW
Operating Weight
18,600 lb | 8 444 kg
EXPLORE THE FEATURES
BROCHURE & SPECS
Case Minotaur™ DL550 Compact Dozer Loader Specifications
2.03MBSPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the CASE Minotaur™ DL550 Compact Dozer Loader.
SPECIFICATIONS
STANDARD EQUIPMENT

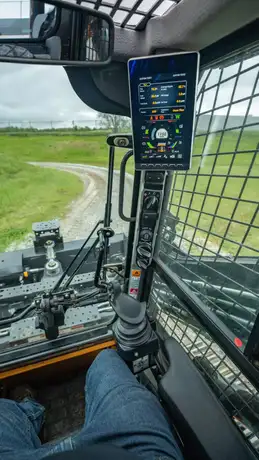

OPERATOR ENVIRONMENT
- Enclosed cab (ROPS/FOPS Level 1)
- Heater and air conditioner
HYDRAULICS
- Auxiliary hydraulics
- @ 3,450 psi (238 bar) – 24.2 gpm (91.5 L/min)
- High-flow auxiliary hydraulics
- @ 3,450 psi (238 bar) – 41.6 gpm (157 L/min)

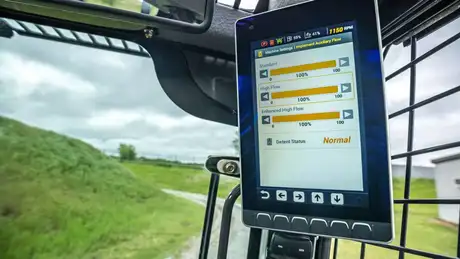

- Enhanced High-Flow auxiliary hydraulics – EHF
- @ 4,100 psi (283 bar) – 41.6 gpm (157 L/min)
- Auto Ride Control
- Creep Speed Mode

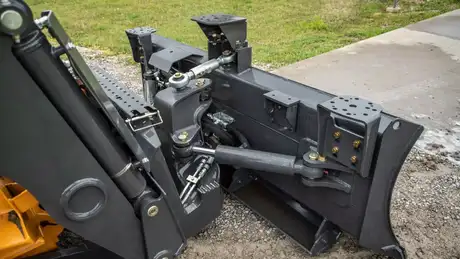

BLADE
- 52° - 60° variable pitch; with integral adjustment tool

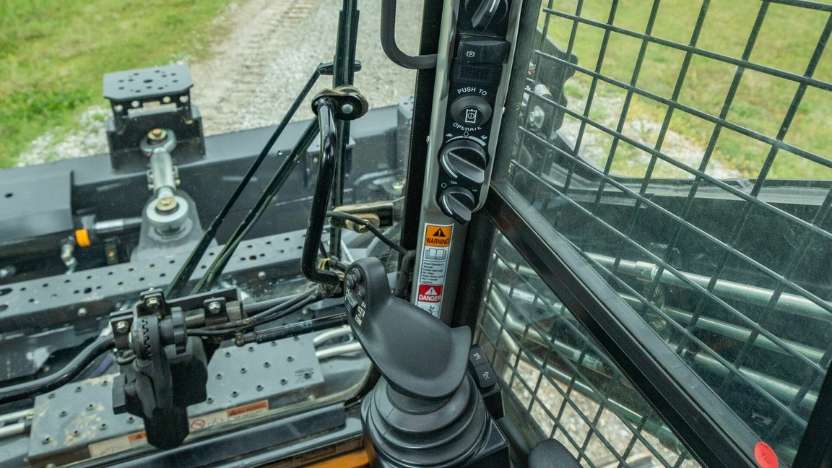

- Single lever control for blade lift, angle and tilt
PRECISION BLADE GUIDANCE
- Blade Guidance Ready
LOADER
- Hydraulic attachment coupler
- Vertical lift geometry
- Loader lift arm support pin
UNDERCARRIAGE
- Heavy Duty Steel Tracks
- Sealed and Lubricated Track Chain (SALT)
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 5-yr data subscription
- SiteConnect Module providing remote diagnostics capability
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Open Cab (ROPS/FOPS Level 1) w/ side screens; Keyed Start
- Mechanical Suspension Seat - Vinyl
- Demolition cab door with polycarbonate
REAR MOUNTED EQUIPMENT
- Ripper - 5 position with 3 shanks
- Replaceable Ripper Teeth
- Drawbar
WARRANTY
BASE & EXTENDED LIMITED WARRANTY COVERAGE:*
- 1-year/unlimited-hour full-coverage base limited warranty
- 2-year/2,000-hour full-coverage base limited warranty
- 2-year/2,000-hour extended limited engine warranty
- Discuss the extended engine warranty coverage details with your dealer.
*Please see your CASE dealer for limitations, exclusions and confirmation of policies in effect.

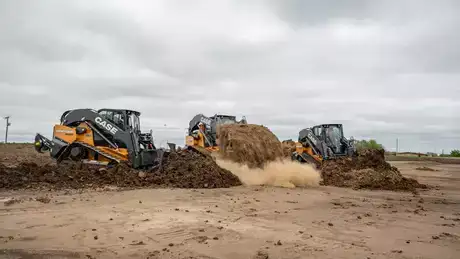

CASE IN ACTION
THE GUTS BEHIND THE GRIT
From job-crushing attachments to swift, smooth, smart product features, CASE compact dozer loaders will help you ingeniously command the jobsite. See how these machines can deliver big results for your operation.
OFFERS & PROMOTIONS
CASE SOLUTIONS
IT'S MORE THAN THE MACHINE
It’s strong-backed machine support. It’s superior fleet intelligence. And it’s an iron-willed dedication to delivering solutions and tech you need to prosper in today’s world. Dig into what’s behind every CASE machine, and you’ll see paydirt every time.
SITEWATCH™ TELEMATICS
Simplified Fleet Management with Telematics
CASE SiteWatch™ Telematics allows you to always know where each machine is, working status and if maintenance or service is required. Utilize real time and historical data for actionable insights to proactively manage your fleet.
PLANNED MAINTENANCE
Protect Your Investment
Maximize your CASE fleet’s performance and longevity while reducing operating costs with a CASE planned maintenance agreement. Detailed maintenance plans provide predictability in your maintenance costs and service intervals.
FINANCING
Financing That Lightens Your Load
From payment schedules with seasonal cash-flow cycles to revolving lines of credit for parts, service, attachment and rentals, you can count on us for flexible solutions you won’t get from a traditional banker.
PARTS
Rock-Solid Parts
Our parts are engineered, tested and proven for durable, reliable performance. And you can research, identify and order parts on your schedule through the online CASE parts store.
DOZERS DON’T NEED TO BE LIMITED TO DOZING
With genuine, compatible CASE attachments like augers, buckets, bale handlers, trenchers, snow blowers and stump grinders, the CASE Minotaur™ DL550 can expand your capabilities and make you money year-round.
