SR270B
The SR270B is one of the industry’s largest and most powerful radial lift skid steers — and at 90 hp, it provides three auxiliary hydraulic options including enhanced high flow (4,000 psi at 135 L per minute) to run demanding attachments such as cold planers and mulchers. Match that with the all-new and intuitive operator interface and simple control customisations made possible through the new 8-inch LCD multi-function display, and the SR270B will handle anything you can throw at it.
DOWNLOADS

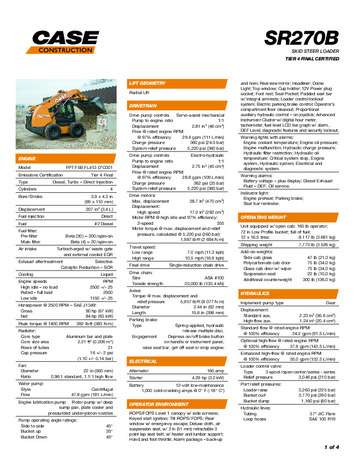

Download Brochures
Share or download a brochure for additional information.
B-Series Skid Steer Loaders - SR270B
0.54MBRated Operating Load
1225 kg
Engine Power
90 hp
Explore the Features
SPECIFICATIONS
Standard Equipment
- ROPS/FOPS Level 1 canopy w/ side screens
- Keyed start ignition
- Tilt ROPS/FOPS
- Rear window w/ emergency escape
- Deluxe cloth, air suspension seat, w/ 2 in (51 mm) retractable 3 point lap seat belt, w/ heater and lumbar support
- Hand and foot throttle
- Alarm package – back-up and horn
- Rearview mirror
- Headliner
- Dome Light
- Top window
- Cup holder
- 12V Power plug socket
- Foot rest
- Seat Pocket
- Padded seat bar w/ integral armrests
- Loader control lockout system
- Electric parking brake control
- Operator’s compartment floor cleanout
- Proportional auxiliary hydraulic control – on joystick
- Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, DEF Level, diagnostic features and security lockout
- Warning lights with alarms:
- Engine coolant temperature
- Engine oil pressure
- Engine malfunction
- Hydraulic charge pressure
- Hydraulic filter restriction
- Hydraulic oil temperature:
- Critical system stop
- Engine system
- Hydraulic system
- Electrical and diagnostic system
- Warning alarms:
- Battery voltage – plus display
- Diesel Exhaust Fluid – DEF
- Oil service
- Indicator light:
- Engine preheat
- Parking brake
- Seat bar reminder
- FPT F5B FL413 D*C001
- 207 CID (3.4 L) Turbo
- Tier 4 Final Certified
- Diesel Oxidation Catalyst (DOC) with Selective Catalytic Reduction (SCR) muffler
- Charged Air Cooler (CAC)
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower:
- Gross: 90 hp (67 kW)
- Net: 84 hp (63 kW)
- Peak torque: 282 lb·ft (383 N·m)
- 160 amp alternator
- Dual element air cooler
- Organic Acid Technology (OAT)
- Anti-freeze solution to -34º F
- Fuel tank – 25.5 gal (U.S.)
- Over and under radiator and oil cooler
- 3-stack after cooler/radiator/oil cooler configuration
- Glow plugs
- Integral engine oil cooler
- Fuel filter with water trap
- 1,000 CCA 12V battery
- Master electrical disconnect
- Jump start terminal
- 2-speed hydrostatic four wheel drive
- ASA #100HS drive chain
- SAHR disc parking brake
- Auxiliary hydraulics:
- @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
- 6 micron oil filtration system
- 3-spool loader control valve
- Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
- Hydraulic circuit pedal lock
- Auxiliary function lockout override
- Loader lift lockout override
- Heavy-duty hydraulic oil cooler
- Loader arm float position
- Loader function lockout system
- Auxiliary front electric control
- Heavy duty hydraulic attachment coupler
- Radial lift geometry
- Loader lift arm support strut
- 12 X 16.5 Heavy duty
- Halogen lights – 2 front, 2 side, 2 rear flood
- Pre-wired for rotating beacon
- Lockable service access hood
- Single-point daily service
- Rear tail lights
- Remote oil drain
- Remote oil and fuel filters
- Block heater
- Debris ingression sealing
- Mounting points for add-on counterweights
SPECIFICATIONS
Optional Equipment
- Enclosed cab:
- Fully sealed and pressurized – FSP
- Glass door with wiper and washer
- Sliding side windows – removable
- Heater and air conditioner
- AM/FM Bluetooth radio with 2 speakers
- Keyless start ignition
- 8 in Color LCD Display
- Economy Mode (auto idle shutdown)
- Auto Engine Protection Shutdown
- 3-point seat belt
- Electro-hydraulic controls:
- For drive/steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
- Mechanical hand controls
- Hand and foot controls:
- Hand controls the loader drive function and foot controls the bucket and boom
- Suspension seat, vinyl
- Demolition cab door with polycarbonate
- FOPS level 2
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
- High-flow auxiliary hydraulics – combined:
- @ 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min)
- Enhanced high-flow auxiliary hydraulics:
- @ 4,000 psi (276 bar) – 35.0 gpm (132.5 L/min)
- Second auxiliary hydraulics
- Hydraulic one-way self-leveling
- Ride control
- Hydraulic attachment coupler
- Creep Speed Mode
- Language decals
- Buckets
- Bolt-on bucket cutting edges
- Special paint
- Offsite service arrangement
- Telematics
- 3 inch (76.2 mm) retractable seat belt
- Bolt-on heavy-duty bucket teeth
- Add-on counterweights
- Road lights
- Rotating beacon
- Four-corner LED strobe
