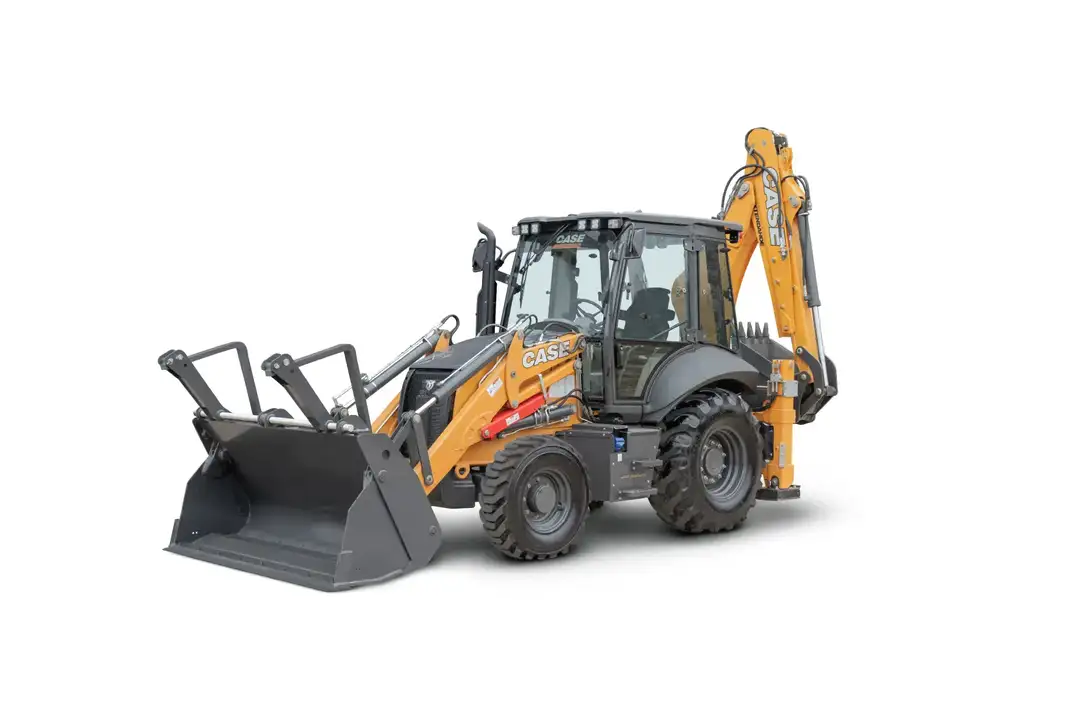

580SV Construction King™ Side Shift Backhoe Loader
This 580SV Construction King™ Side Shift Backhoe Loader takes legendary CASE backhoe capabilities and puts them smack dab into confined spaces and next to structures. That’s because this model features a hydraulic side shift boom and vertical outriggers that let the machine get busy when snugged up against a building or along a tight roadway. It also lets operators dig rectangular trenches without having to reposition. The boom is curved, offering an outstanding view down to the bucket. And with a strapping 97 hp engine, responsive transmission and tool carrier linkage, you’re staring at a backhoe that’s all business.
Horsepower
97 hp | 72 kW
Dig Depth
14’ 5” | 4.39 m
EXPLORE THE FEATURES
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 580SV Construction King™ Side Shift Backhoe Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS/FOPS certified protective cab
- Mechanical suspension deluxe seat
ENGINE
- FPT F5 diesel
- Selective Catalytic Reduction – SCR
- Full flow engine oil filter
- Auto Engine Shutdown
DRIVETRAIN
- Power Shuttle 4F-4R synchromesh transmission
- Front axle: 4WD mechanically driven front axle
- Rear axle: 4WD heavy-duty outboard planetary drive
LOADER
- Tool carrier loader arms with parallel lift in both directions and return to dig; Single lever 4-function loader control: lift, dump, clutch cut-out, differential lock
BACKHOE
- Hydraulic Side Shift Backhoe
- In-line cylinder curved boom backhoe design
- Dirt stabilizer pads
- Mechanical Transport Lock
- Pro Control System
OTHER
- Forward tilt engine hood
- Adjustable halogen Working/Driving Lights (55 W) – cab and canopy:
- 4 front
- 4 rear
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 5-yr Advanced data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS/FOPS certified protective canopy
DRIVETRAIN
- H-Type Powershift transmission, 4F-3R, hydraulic clutch shifting, kick down, transmission disconnect and FNR switch in loader control lever, includes auto shift mode
LOADER
- Auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control
- Hydraulic front quick coupler
- Tool portfolio of additional attachments
BACKHOE
- Backhoe Booms:
- 14 ft Standard Boom
- 14 ft Extendahoe®
- 15 ft Extendahoe®
- Pilot operated control system:
- Thumb-operated proportional Extendahoe®
- Fingertip proportional stabilizer controls
- Thumb-operated auxiliary hydraulic control
- Infinitely adjustable pilot control towers
- In-cab switchable “excavator to backhoe” control pattern change
- Universal Footstreet stabilizer pads
- Overlapping Cylinder Boom with Extendahoe®
- 1-way auxiliary hydraulics
- 2-way auxiliary hydraulics
- Combined 1-way/2-way auxiliary hydraulics
- Hydraulic Transport Lock
- Bucket quick coupler
SERVICE PARTS
- 3 inch seat belt
- N Series compatible backhoe coupler for in-line cylinder backhoe
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty - Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
