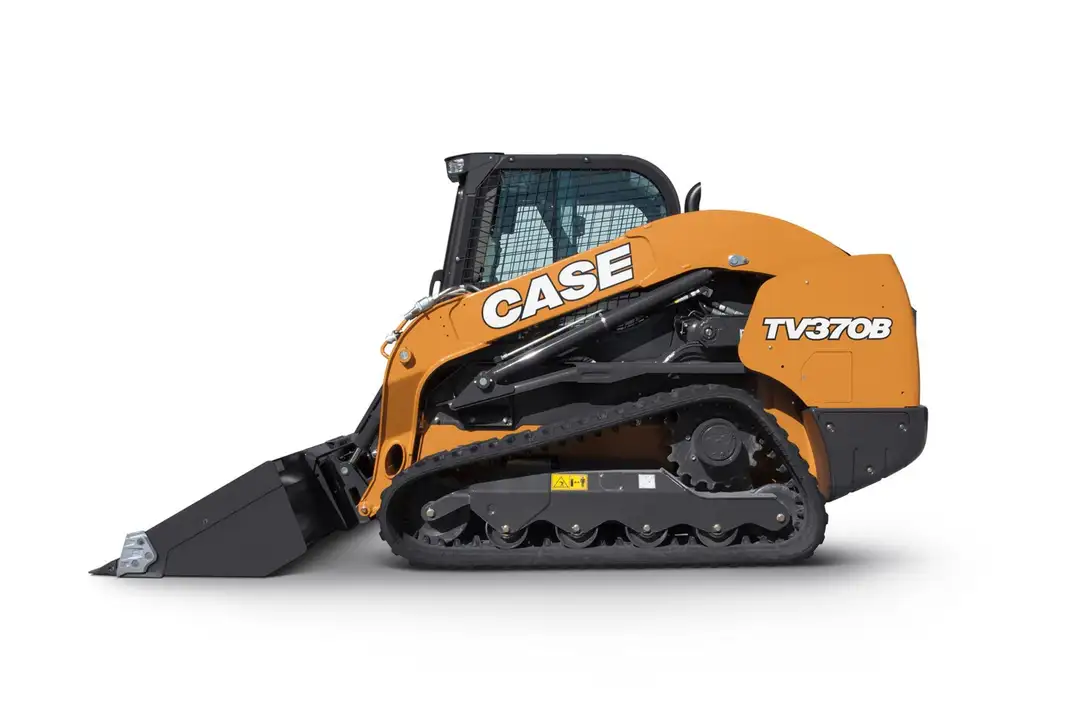

TV370B Compact Track Loader
Those looking for a vertical lift loader that can take a bigger bite out of the job will like the CASE TV370B. This machine delivers large-frame CTL strength and capacity in a very efficient machine. With 74 hp, it offers operating capacity and reach that rival larger units. The maintenance-free Tier 4 Final emissions solution means no Diesel Particulate Filter (DPF) to replace and no regeneration downtime. The EZ Trac option improves comfort while boosting the tractive effort performance. And the spacious cab features easy-to-operate joystick controls and an 8-in. LCD that displays loads of machine vitals and settings. Ready to fill up more jobs?
Horsepower
74 hp | 55 kW
Rated Operating Capacity - 50% of Tipping Load
3,700 lb | 1 682 kg
EXPLORE THE FEATURES
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the TV370B Compact Track Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS/FOPS Level 1 canopy w/ side screens
- Rear window w/ emergency escape
- Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
- Rearview mirror
HYDRAULICS
- Auxiliary hydraulics
- @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
LOADER
- Manual attachment coupler
- Vertical lift geometry
OTHER STANDARD FEATURES
- LED lights - 2 front, 2 side, 2 rear flood
- Block heater
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Enclosed cab
- Fully sealed and pressurized – FSP
- AM/FM Bluetooth radio with 2 speakers and USB port
- 8-inch LCD Multi-Function Display
- Economy Mode (auto idle shutdown)
- Electro-hydraulic controls
- Deluxe cloth, air suspension seat, with heater and lumbar support
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
HYDRAULICS
- High-flow auxiliary hydraulics – combined
- @ 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min)
- Secondary auxiliary hydraulics
DRIVETRAIN
- Creep Speed Mode (standard with EH Controls)
FACTORY SUPPLIED ATTACHMENTS
- Rotating beacon
SERVICE PARTS
- Add-on counterweights
- Aspirator
OTHER
- Telematics
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Warranty
- 2-Year/2,000-Hour Full Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Compact Track Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
