DV210CD Combi Roller
The CASE DV210CD is a combination roller that appropriately offers the ultimate combination of power, productivity and control. It features a balanced drum design up front and kneading pneumatic tires in the rear. The result is jumbo centrifugal forces, higher-quality compaction and fewer passes required. The sprinkling system can be adjusted to the ideal amount for the job. The adjustable, swiveling seat puts you where you need to be. Intelligent controls make operation intuitive. And easy maintenance access keeps you up and running. That all adds up to a lot of jobs getting done right.
Horsepower
100 hp | 74.4 kW
Operating Weight
22,440 lb | 10 180 kg
TAKE A CLOSER LOOK
WALKAROUND
Take a quick tour and get a good look at the features and technology that make the DV210CD the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute the operator climbs into its comfortable cab.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the DV210CD Large Combination Roller.

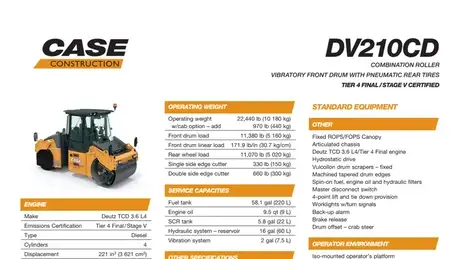

SPECIFICATIONS
STANDARD EQUIPMENT
OTHER
- Fixed ROPS/FOPS Canopy
- Deutz TCD 3.6 L4/Tier 4 Final engine
- Articulated chassis
- Drum offset - crab steer
- Vulcollon drum scrapers - fixed
- Worklights w/ turn signals
OPERATOR ENVIRONMENT
- Lateral moving suspension seat w/ foldable arms
- Smooth start and stop
- Single lever speed and direction control w/ vibration on/off control
MONITOR DISPLAY PANEL
- % engine load at current RPM
WATER SYSTEM
- Pressurized water system
- 3-stage water filtration
- Water system drains
- Water system on/off
- Dual fill port water tank
- Adjustable sprinkler volume control
VIBRATION SYSTEM
- Front drum vibration control modes
- Dual-mode vibratory system
- Auto vibration stop in neutral
TELEMATICS
- CASE Sitewatch Telematics - includes hardware and 5-yr advanced data subscription
OPTIONAL EQUIPMENT
OTHER
- Right side edge cutter (45 or 60 degrees)
- Right and left side edge cutters (45 or 60 degrees)
- Tiltable scrapers - front and rear
- Infrared thermometer
- ACE Force Intelligent compaction
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
