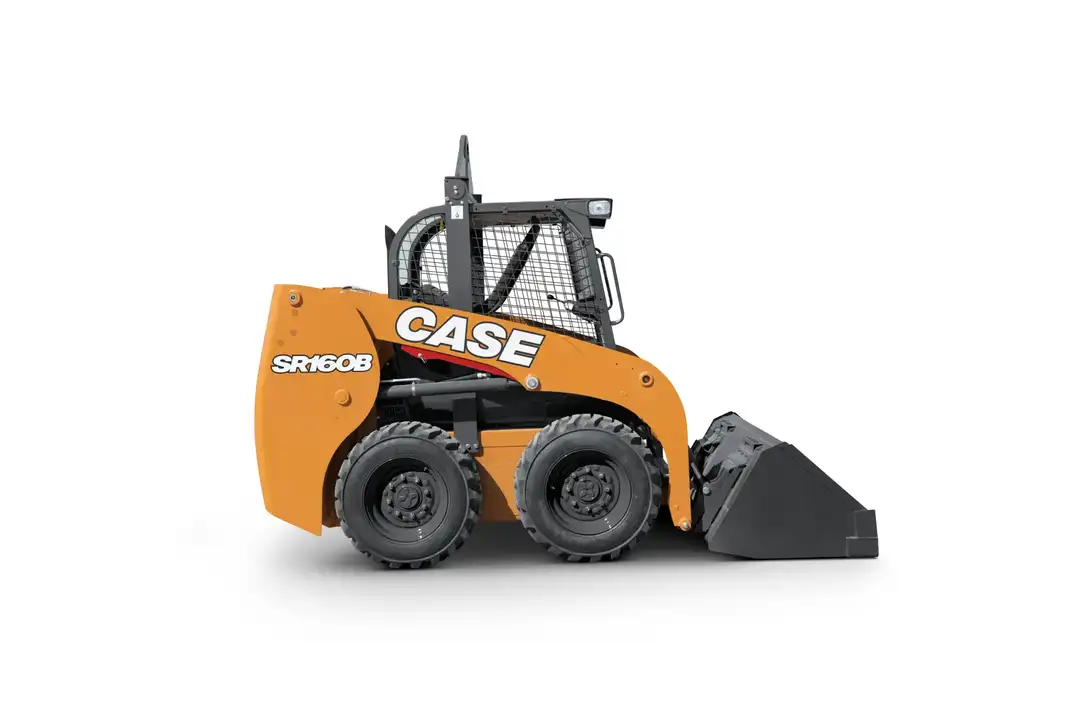

SR160B Skid Steer Loader
The CASE SR160B is the easiest way to get yourself into the seat of a genuine construction-grade skid steer. It offers a low total cost of ownership, along with dimensions that make it easy to transport. It weighs just 5,645 lbs., goes a hair over 6 ft. in height and fits behind a 60 in. bucket. That means it can get into tight jobsites. The controls are well-positioned and make it a cinch to operate. And the 8-in. LCD display churns out all kinds of machine data, along with access to a rear-view camera view. It’s part of the superior visibility which is tops in the industry. Hop in and see for yourself.
Horsepower
60 hp | 44.7 kW
Rated Operating Capacity
1,600 lb | 726 kg
EXPLORE THE FEATURES
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the SR160B Skid Steer Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS / FOPS Level 1 canopy w/ side screens
- Rear window w/ emergency escape
- Rearview mirror
ENGINE
- Perkins/ISM N844LT-F-45SL diesel
- 135.2 CID (2.2 L) Turbo
- Tier 4 Final Certified
- Spark Arresting Diesel Particulate Filter (DPF) muffler
- Charged Air Cooler (CAC)
- Indirect fuel injection
- Horsepower
- Gross: 60 hp (44.7 kW)
- Net: 57 hp (42.4 kW)
- Peak torque: 139 lb·ft (188 N·m)
HYDRAULICS
- Auxiliary hydraulics:
- @ 3,050 psi (210 bar) – 18.4 gpm (69.7 L/min)
LOADER
- Manual attachment coupler
- Radial lift geometry
OTHER STANDARD FEATURES
- LED lights – 2 front, 2 side, 2 rear flood
- Block heater
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 5-yr data subscription
- SiteConnect Module providing remote diagnostics capability
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- AM / FM Bluetooth radio with 2 speakers
- Deluxe cloth, air suspension seat, with heater and lumbar support
HYDRAULICS
- Hydraulic one-way self-leveling
LOADER
- Hydraulic attachment coupler
FACTORY SUPPLIED ATTACHMENTS
- Rotating beacon
SERVICE PARTS
- Add-on counterweights
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Warranty
- 2-Year/2,000-Hour Full Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
