Excavators

Crawler Excavators

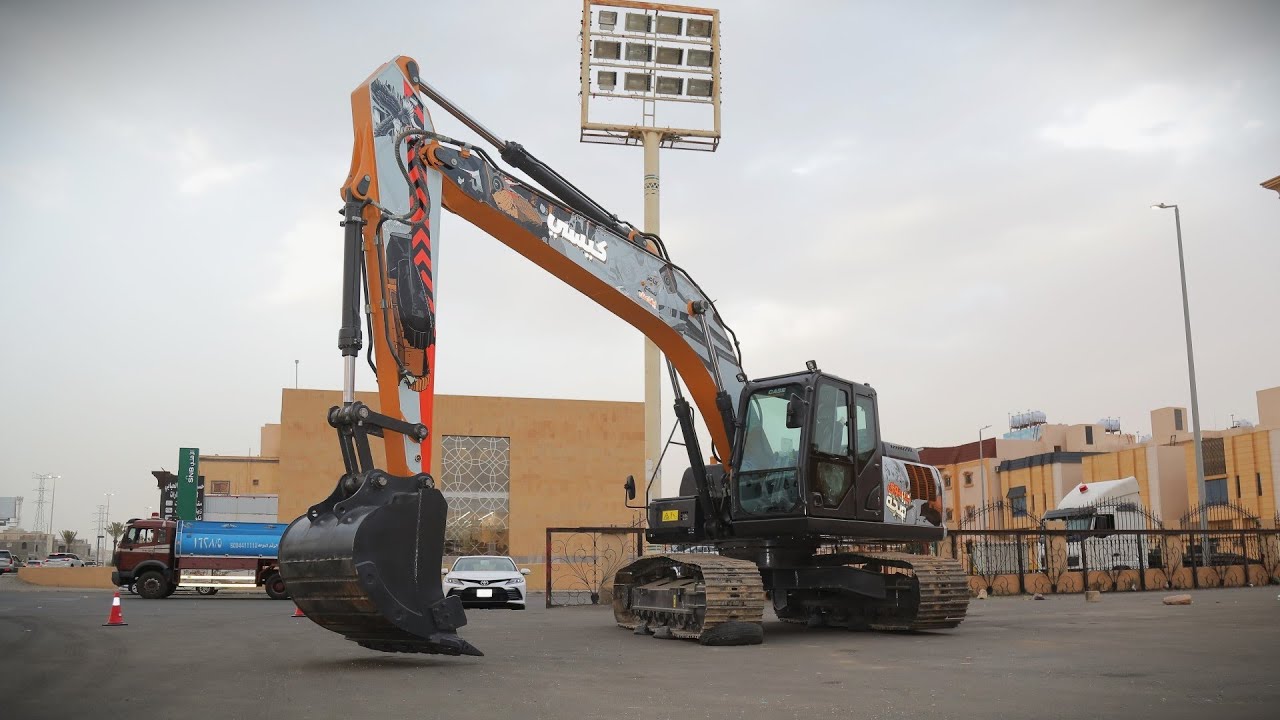

CX230D

  • Weight 22.6 t
  • Power 124 kW / 166 hp

CX230D

The perfect equipment for:
  • Urban
    Urban
  • Infrastructure
    Infrastructure
  • Recycling
    Recycling
  • Quarrying
    Quarrying
Downloadables:
Crawler Excavators - CX230D
Crawler Excavators - CX230D
Download

Specifications

ENGINE
Model ISUZU AR-4HK1X
Type Water-cooled, 4-cycle diesel, 4-cylinder in line, High pressure common rail system
(electric control), Turbocharger with air cooled intercooler, SCR system
Number of cylinders/ Displacement (l) 4 / 5,2
Emissions Tier 4 final / Eu stage IV
Bore and stroke (mm) 115 x 125
Rated flywheel horse power
SAE J 1349, ISO 9249 119.3 kW / 160 hp at 1800 min-1
ISO 14396 24 kW / 166 hp at 1800 min-1
Maximum torque
SAE J 1349, ISO 9249 620 Nm at 1600 min-1
ISO 14396 636 Nm at 1600 min-1
HYDRAULIC SYSTEM
Main pumps 2 variable displacement axial piston pumps with regulating system
Max. oil flow 2 x 211 liter/min at 1800 min-1
Working circuit pressure
Boom/Arm/Bucket 34.3 MPa - 37.3 MPa with auto power boost
Swing circuit 29.4 MPa
Travel circuit 34.3 MPa
Pilot pump 18 liter/min
Working circuit pressure 3.9 MPa
Boom Cylinders
Bore 120 mm
Stroke 1255 mm
Boom Positioning (2 piece boom only)
Bore 150 mm
Stroke 1090 mm
Arm Cylinders
Bore 140 mm
Stroke 1460 mm
Bucket Cylinder
Bore 120 mm
Stroke 1010 mm
SWING
Swing Motor Fixed displacement axial piston motor
Maximum swing speed 11.5 min-1
Swing torque 64,000 Nm
FILTERS
Suction filter 105 µm
Return filter 6 µm
Pilot line filter 8 µm
ELECTRICAL SYSTEM
Voltage 24 V
Alternator 50 Amp
Starter 24 V 5.0 kW
Battery 2X12V 128 Ah/5 HR
UNDERCARRIAGE
Travel motor Variable displacement axial piston motor
High travel speed (Automatic travel speed shifting) 5.0 km/h
Low travel speed  3.2 km/h
Drawbar pull 200 KN
Number of carrier rollers (each side) 2
Number of track rollers (each side) 8
Number of shoes (each side) 47
Type of shoes Triple grouser shoes
Grade ability 70 % (35°)
CIRCUIT AND COMPONENT CAPACITIES
Fuel tank (l) 320
Hydraulic system (l) 220
Hydraulic tank (l) 117
Adblue tank (l) 85
SOUND LEVEL
External guaranteed sound level (EU Directive 2000/14/EC) LwA 101 dB(A)
Operator cab sound pressure level (ISO 6396) LpA 69 dB(A)
