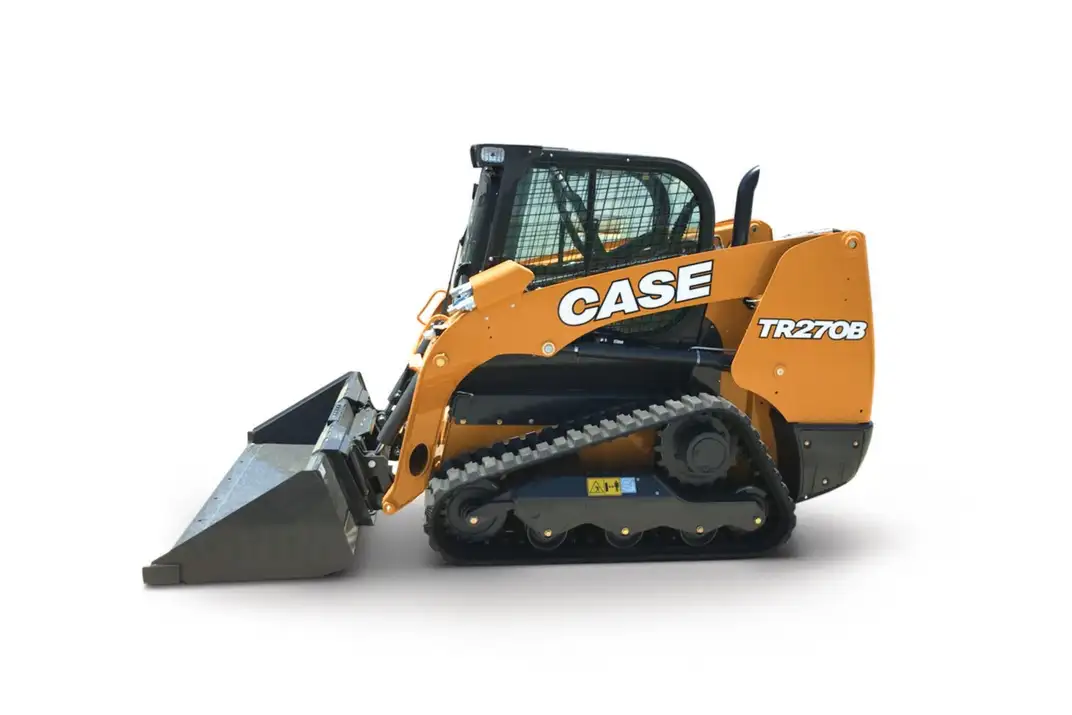

TR270B Compact Track Loader
The CASE TR270B is one of those machines that makes it all easier. At 8,270 lbs., it’s easy to transport. Once there, it’s simple to operate. The joystick controls are streamlined for easier grip and operation with trigger switches and convenient buttons. Plus, an 8-in. LCD display puts critical info within short reach. The machine goes easy on turf thanks to low ground pressure, while 74 horses make digging and loading a snap. The Tier 4 Final emissions is maintenance free. And the comfortable, roomy cab is a breeze to get in and out of. So, you can make quick work of one job and move right onto the next.
Horsepower
74 hp | 55 kW
Rated Operating Capacity - 50% of Tipping Load
2,700 lb | 1 225 kg
EXPLORE THE FEATURES
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the TR270B Compact Track Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS/FOPS Level 1 canopy w/ side screens
- Rear window w/ emergency escape
- Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
- Rearview mirror
ENGINE
- FPT F5H FL463 A*G001
- 207 CID (3.4 L) Turbo
- Tier 4 Final Certified
- Diesel Oxidation Catalyst (DOC)
- Horsepower
- Gross: 74 hp (55 kW)
- Net: 68 hp (51 kW)
- Peak torque: 232 lb·ft (314 N·m)
HYDRAULICS
- Auxiliary hydraulics
- @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
LOADER
- Manual attachment coupler
- Radial lift geometry
- SAE operating load: 2,700 lbs
- Tipping load: 5,400 lbs
OTHER STANDARD FEATURES
- LED lights - 2 front, 2 side, 2 rear flood
- Block heater
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Enclosed cab
- Fully sealed and pressurized – FSP
- AM/FM Bluetooth radio with 2 speakers and USB port
- 8-inch LCD Multi-Function Display
- Economy Mode (auto idle shutdown)
- Electro-hydraulic controls
- Deluxe cloth, air suspension seat, with heater and lumbar support
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
HYDRAULICS
- High-flow auxiliary hydraulics – combined
- @ 3,050 psi (210 bar) – 32.4 gpm (122.6 L/min)
- Second auxiliary hydraulics
LOADER
- Auxiliary front electric control
DRIVETRAIN
- Creep Speed Mode (for EH machines only)
FACTORY SUPPLIED ATTACHMENTS
- Rotating beacon
SERVICE PARTS
- Add-on counterweights
OTHER
- Telematics
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Warranty
- 2-Year/2,000-Hour Full Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Compact Track Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
