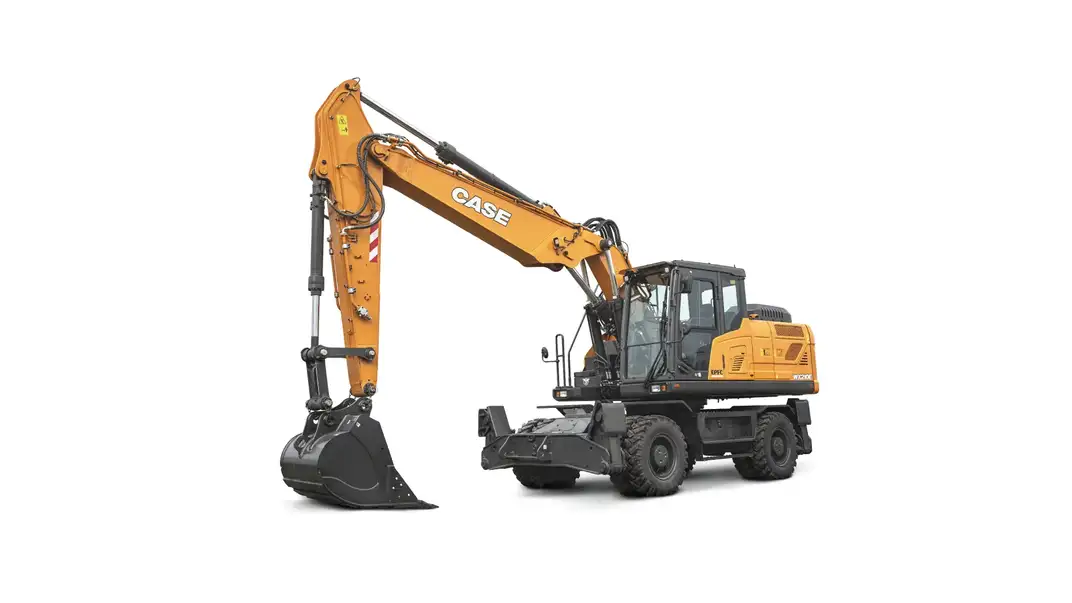

WX210E Wheeled Excavator
Settle into the seat of the new CASE WX210E wheeled excavator, and you’ve got 24 tons of fast-moving, high-tech, job-crushing power at your command. For starters, check out the big powerplant. It’s 170 horsepower, and it kicks out massive breakout forces and lifting and craning capacities. So, you can clear land or break through rocky terrain like it was butter. The control is precise, thanks to our advanced, industry-best hydraulics. Three pre-set power modes plus the exclusive Lift mode take the guess work out of efficient operation. And the spacious cab gives you the best seat in the site. So, put the wheels in motion, and see where this machine takes you.
Horsepower
170 hp | 127 kW
Operating Weight
53,649 lb | 24 335 kg
EXPLORE THE FEATURES
SOME MACHINES ARE TOUGH TO IGNORE
The CASE WX210E wheeled excavator has been rolling its way into the hearts and jobsites of operators since its recent introduction, thanks to its innovative design and job-crushing capabilities, not to mention its comfort and safety. Because of that, it's rolled all the way onto the Contractor's Top 50 New Products list in Equipment Today.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the WX210E Wheeled Excavator.
SPECIFICATIONS
STANDARD EQUIPMENT
ENGINE
- Cummins B6.7
- Charge air-cooled
- 6-cylinder in line
- 6.7-liter
- DOC+DPF+SCR aftertreatment
- EGR free engine
- Rated flywheel horsepower
- ISO 9249 170 hp (127 kW) @ 2200 RPM
- ISO 14396 173 hp (129 kW) @ 2200 RPM
- Maximum torque
- ISO 14396 575 ft·lb (780 Nm) @ 1500 RPM
- Tier 4 Final / Stage V certified
- Ultra-low sulfur diesel and B7 biodiesel fuel certified
UNDERCARRIAGE
- Removable parallel mounting bolt-on designed rear blade and front stabilizers
- Cab access steps
- Lashing points (tie downs)
UPPER CARRIAGE
- LED working lights package
HYDRAULIC SYSTEM
- Load sensing hydraulic system (LUDV) with advanced flow sharing hydraulics
- 3 selectable work modes (heavy duty, standard and economy)
- 1 - selectable user customized work mode - engine speed, idle speed, machine speed and pump flow
- High flow multi-function with pressure setting circuit for one-way and two-way flow attachments
- In monitor hydraulic settings storage and management for 10 one-way and 10 two-way attachments
- Quick coupler hydraulic circuit
- Accumulator on boom cylinders for cushioning ride control system
DRIVELINE
- 2-speed hydrostatic powershift transmission
- High travel speed (Automatic travel speed shifting)
- 24 mph (38.4 km/h)
OPERATOR ENVIRONMENT
- Enclosed pressurized cab with air conditioning, heat and defrost with full climate control and lockable door
- ROPS/FOPS certified
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Rear view camera only
- Rear and right-side cameras
FRONT END EQUIPMENT
- Digging Arm
- 7 ft 10 in (2.4 m)
- Monoboom (ride control not available)
