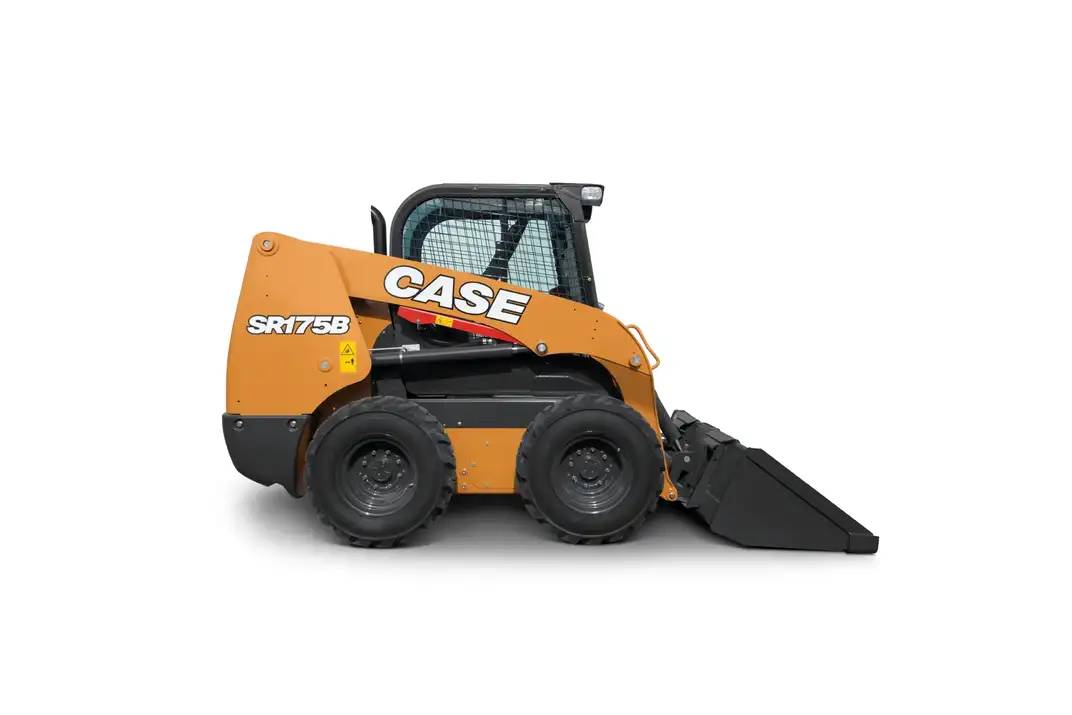

SR175B Skid Steer Loader

The CASE SR175B skid steer sports a compact footprint. But look deeper, and you’ll see a ton of productivity packed in. This radial-lift machine features a rated operating capacity of 1,750 lbs. Along with 67 hp, you’re set for medium-duty jobs. The cab has electro-hydraulic controls and four ride control activation speeds to accommodate different tasks. The 8-in. LCD display is a marvel. It displays machine vitals, settings and more. There’s visibility like no other, thanks to large windows and integrated rear camera. And the big cab keeps operators comfy. Yes, we put a lot in this machine because you have a lot to do.

Horsepower

67 hp | 50.0 kW

Rated Operating Capacity

1,750 lb | 790 kg

BROCHURE & SPECS

Skid Steer Loader B Series Brochure

8.32MB

SR175B Skid Steer Loader Specifications

0.49MB

SPECIFICATIONS

STANDARD & OPTIONAL EQUIPMENT

Explore standard equipment, optional equipment and warranty information for the SR175B Skid Steer Loader.

VIEW

SPECIFICATIONS

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

ROPS / FOPS Level 1 canopy w/ side screens
Rear window w/ emergency escape
Rearview mirror

HYDRAULICS

Auxiliary hydraulics:
- @ 3,050 psi (210 bar) – 20.6 gpm (78.0 L/min)

LOADER

Manual attachment coupler
Radial lift geometry

OTHER STANDARD FEATURES

LED lights – 2 front, 2 side, 2 rear flood
Block heater

TELEMATICS

CASE SiteWatch™ Telematics – includes hardware and a 5-yr data subscription
SiteConnect Module providing remote diagnostics capability

OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT

AM / FM Bluetooth radio with 2 speakers
8 in. Color LCD Display
Deluxe cloth, air suspension seat, with heater and lumbar support
Ignition Timeout
Machine Settings User Access Levels
Operator Security Codes

HYDRAULICS

High-flow auxiliary hydraulics – combined:

@ 3,050 psi (210 bar) – 30.7 gpm (116.2 L/min)

Hydraulic one-way self-leveling
Auto Ride Control

LOADER

Hydraulic attachment coupler

DRIVETRAIN

Creep Speed Mode (on EH machines only)

FACTORY SUPPLIED ATTACHMENTS

Rotating beacon
Four point lift hook

SERVICE PARTS

Add-on counterweights
Single Point Lift Hook
Aspirator

WARRANTY

BASE & EXTENDED WARRANTY COVERAGE

1-Year/Unlimited-Hour Full-Coverage Base Warranty
2-Year/2,000-Hour Full Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

PURCHASED PROTECTION

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
