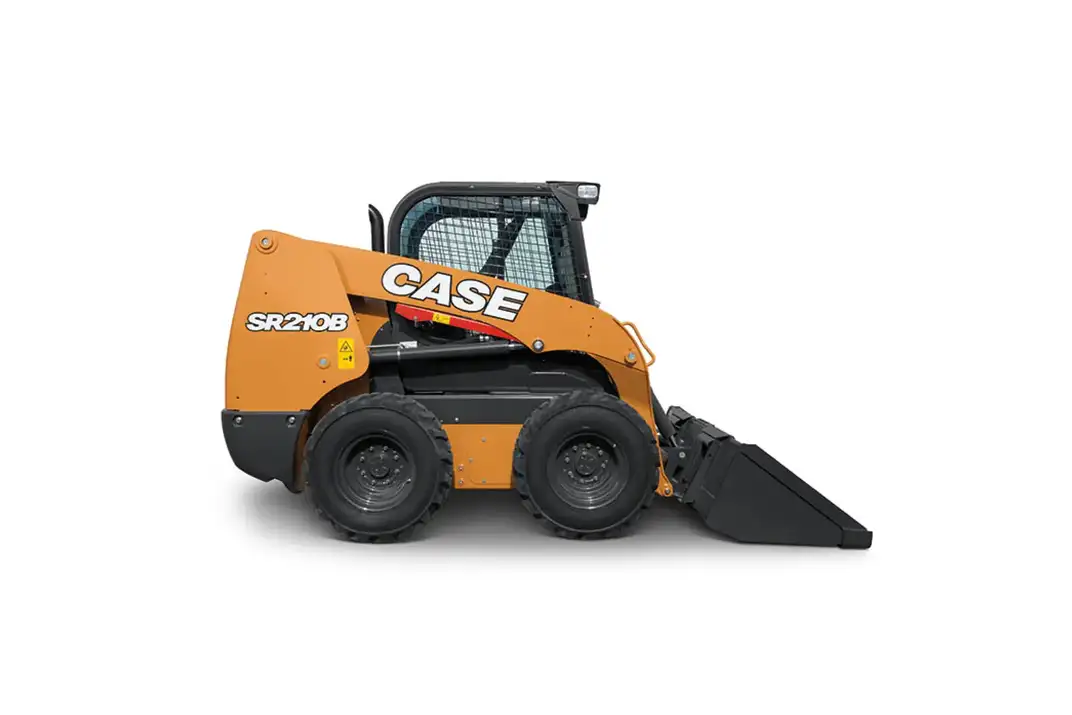

SR210B Skid Steer Loader
With a tight 44.4 in. wheelbase and a tidy length under 130 in. with excavating bucket, the CASE SR210B might feel like a compact skid steer. But this one muscles through a jobsite like a much bigger machine. With 74 hp, a rated operating capacity of 2,100 lbs. and bucket breakout forces of 7,270 lbs., you can flex some serious strength, all while getting into more confined spaces. It also features maintenance-free Tier 4 Final emissions. And the roomy cab features easy-to-operate joystick controls. So, fire up this concentrated powerhouse. Before you know it, you’re off and running towards payday.
Horsepower
74 hp | 55 kW
Rated Operating Capacity
2,100 lb | 955 kg
EXPLORE THE FEATURES
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the SR210B Skid Steer Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS/FOPS Level 1 canopy w/ side screens
- Rear window w/ emergency escape
- Rearview mirror
ENGINE
- FPT F5H FL463 A*G001
- 207 CID (3.4 L) Turbo
- Tier 4 Final Certified
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower
- Gross: 74 hp (55 kW)
- Net: 68 hp (51 kW)
- Peak torque: 232 lb·ft (314 N·m)
HYDRAULICS
- Auxiliary hydraulics
- @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
LOADER
- Manual attachment coupler
- Radial lift geometry
OTHER STANDARD FEATURES
- LED lights – 2 front, 2 side, 2 rear flood
- Block heater
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 5-yr data subscription
- SiteConnect Module providing remote diagnostics capability
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- AM/FM Bluetooth radio with 2 speakers
- 8 in Color LCD Display
- Economy Mode (auto idle shutdown)
- Auto Engine Protection Shutdown
- Electro-hydraulic controls
- For drive/steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
- Deluxe cloth, air suspension seat, w/ 2 in (51 mm) retractable 3 point lap seat belt, w/ heater and lumbar support
- Ignition Timeout
- Machine Settings User Access Levels
- Operator Security Codes
HYDRAULICS
- High-flow auxiliary hydraulics – combined:
- @ 3,050 psi (210 bar) – 30.7 gpm (116.2 L/min)
- Hydraulic one-way self-leveling
LOADER
- Hydraulic attachment coupler
DRIVETRAIN
- Creep Speed Mode (on EH machines only)
FACTOR SUPPLIED ATTACHMENTS
- Rotating beacon
SERVICE PARTS
- Second auxiliary hydraulics
- Add-on counterweights
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Warranty
- 2-Year/2,000-Hour Full Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
