221F Compact Wheel Loader
The 221F is a machine that’s built with lots of lean muscle. It’s compact and can scoot in and out of close quarters, but it can also lift a whopping 8,317 lbs. at full height. Step into the cab, and you’ll see it has a way of lifting you up too. Roomy interior. Adjustable seating. All-in-one joystick. And great visibility. Operating attachments like brooms and snowblowers is smoother thanks to auxiliary high-flow and creep speed that put out maximum hydraulic flow at a constant speed. And it’s got a maintenance-free Tier 4 emissions solution. You might just go looking for more material to move.
Horsepower
74 hp | 55 kW
Operating Weight
12,547 lb | 5 691 kg
EXPLORE THE FEATURES
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 221F Compact Wheel Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS: ISO 3471: 2,008 lb (6 800 kg)
- Base and Deluxe Cab w/ heater and A/C
- Full adjustable, cloth suspension seat

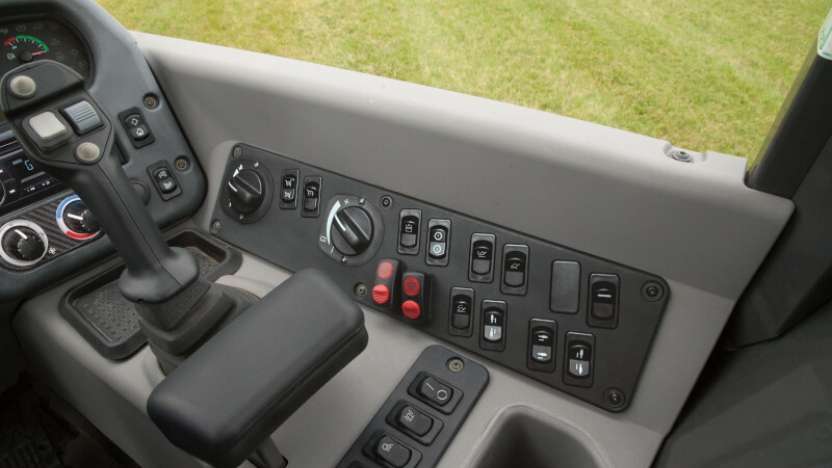

- Single joystick w/ electronic speed shift control F/N/R switch proportional loader control and proportional hydraulic auxiliary w/ detent switch hydraulic
- 4 Corner Strobes
- SSL compatible coupler
ENGINE
- FPT F5H FL463 A
- Smart Mode Feature
DRIVETRAIN
- 4-wheel drive
- Open – front and rear axles
- Hydrostatic transmission
- Single joystick with electronic speed shift control F/N/R switch and proportional loader control
- Outboard planetary axles
- Hydraulic wet disc brakes
- Mechanical parking brake
HYDRAULICS
- 3-spool loader control valve
- 3 Diagnostic quick couplers
- Adjustable electro hydraulic (EH) loader controls. Smooth, moderate & aggressive settings for both lift and tilt responsiveness.
- Return to dig
- Adjustable electro hydraulic (EH) loader controls
- Hydraulic skid steer compatible coupler
- Connect under pressure connectors
- Remote drain of hydraulic oil
- Aux. Hydraulic drain line coupling
OTHER
- Articulation locking pin
- Tie-down and Lift-up point – front and rear
- Rotating beacon
- Bucket position indicator
- CASE SiteWatch™ Telematics
- Includes hardware and a 5-yr advanced data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Creep speed
- 0 – 3.1 mph (5 kph)
- TeleScop adjustable steering column on Deluxe Cab
- Canopy cab
- 100% lock – front and open rear axles
- Horizontal pin coupler
LOADER
- Optional High flow:
- Max. 34.3 gpm @ 2500 RPM @ 2,901 psi
- (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)
- STD forks
- Auto Ride Control w/speed settings
OTHER
- LED work lights, 2 front and 2 Rear
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1 Year / Unlimited Hour Full Coverage Base Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
