CX210E-S
The E-S model tips the scales around 500kg heavier than the CX210E, due to the heavy-duty build of its front-end equipment, lower structure and undercarriage, and it can be boosted by another 500kg by selecting an optional counterweight to better manage heavier attachments. It boasts lifting capacity and drawbar pull virtually unchanged and the machine also delivers the very same breakout forces.
The new ‘Essential’ model will benefit from all of the existing services offered by CASE, including extended warranty and planned maintenance contracts, regular inspections, fluid analysis, maintenance kits and telematics.
DOWNLOADS
Download Brochures
Share or download a brochure for additional information.

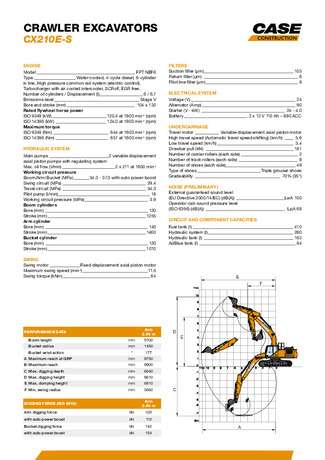

CX210E-S - Specsheet
0.77MBWeight
22.5 t
Power
120.4 kW at 1800 min-1
Solutions
CASE SiteWatch™
Boost your machine's profitability by tracking and managing your fleet's operation.
CASE SiteConnect
Reduce your Total Cost of Ownership by increased connectivity resulting to more efficient service.
CASE SiteControl™
MACHINE CONTROL SOLUTIONS
The Leica iCONstruct portfolio offers you a straightforward solution that you can customize to match the specific requirements of your road and building construction business.
SPECIFICATIONS
Standard Equipment
- FPT NEF 6-cylinder turbo-charged diesel
- Stage V
- Selective Catalytic Reduction on Filter (SCRoF)
- Diesel Oxidation Catalyst (DOC)
- EGR-free
- VGT turbocharger
- Electronic fuel injection
- High pressure common rail system
- Neutral safety start
- Auto engine warm up, emergency stop
- Glow-plug pre-heat
- EPF (Engine Protection Feature)
- Dual-stage fuel filtration
- Dual element air filter
- Remote oil filter
- Green plug oil drain
- 1,000 hour engine oil and fuel filters change interval
- 24-volt system
- Battery disconnect switch
- High ambient temperature cooling package
- External fuel and AdBlue gauges
- Fuel cooler
- Fuel filter + fuel prefilter with water accumulation indicator
- Fuel shut-off valve
- Idle start
- Radiator, oil cooler, intercooler
- protective screen - Refueling pump
- Eco mode
- Auto idle
- One-touch idle
- Idle shutdown
- Pump Torque Control (PTC)
- Boom Economy Control (BEC)
- Swing Relief Control (SRF)
- Spool Stroke Control (SSC)
- Boom Oil Regeneration (BOR)
- Hydraulic flow control balance
- Electronically controlled hydraulic pumps
- Auto power boost
- Auto travel speed change
- 4 selectable work modes
- Overload warning device
- ISO pattern controls
- Pre-set auxiliary pump settings
- Switch controlled auxiliary selection
- Auxiliary valve
- Hydraulic filter restriction indicator
- Multifunction (hammer/high flow) circuit with electrical proportional control
- Oil cooler
- 5,000 hour hydraulic oil change interval
- 2,000 hour hydraulic filter change interval
- Hydraulic quick coupler provision
- Hydraulic fluid supply port with air breather
- ISO mirrors
- Handrail – RH access
- ISO guard rails
- Isolation mounted cab (fluid and spring)
- Lifting eyes for counterweight
- Lockable fuel cap, service doors and toolbox
- Rear and side view safety camera
- ROPS protection
- FOPS guard OPG level 2
- Pressurized cab
- Tempered safety glass
- One-touch lock front window
- Sun visor & rain deflector
- A/C, heating and defrosting with automatic control
- Luch box & cool box, cup holders & ashtray
- Interior dome light
- Multi-adjustable low frequency air suspension console and tiltable heated seat with air springs and double acting hydraulic damper
- Sliding seat – 90 mm
- Seat belt with fasten detection
- Adjustable armrests
- Low-effort joystick controls
- Sliding cockpit - 80 mm
- Auxiliary select system
- Aux-in port for personal electronics
- Multifunction LED color monitor (10”), with silicon switches
- 22 selectable languages for monitor
- Anti-theft system (start code system)
- Travel alarm
- AM/FM Bluetooth radio with antenna and 2 speakers
- Split type floor mat
- 12-volt electric socket
- 24-volt cigarette lighter
- One-piece right hand window
- 7 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 3 all-around)
- Windshield wiper / washer
- Clear (Lexan) roof window with sunshade
- Rain deflector
- Storage compartments
- On-board diagnostic system
- Standard HD boom 5.7 m
- HD arm 2.94 m
- Attachment types and names storable in the display
- 600 mm steel triple grouser HD shoes
- Full overlap turntable bearing tub
- Sealed link chain
- Lashing points
- SiteConnect module and 3 years advanced SiteWatch subscription with remote monitoring
SPECIFICATIONS
Optional Equipment
- Low-flow circuit, proportional control
- Additional +500 kg counterweight
- HD arm 2.40 m
- Arm 2.40 m
Compatible Attachments
Your CASE equipment is the platform - your attachments make the difference in how much work you win and how profitable your machine is.
Buckets for Direct Fit and G type quick coupler
Wide range of buckets for Direct fit and/orfor G type quick couplers.
Buckets for Direct Fit or MultiFit quick coupler
Wide range of buckets for Direct fit and/or for MultiFit "S" quick couplers.
G type hydraulic quick coupler
Universal hydraulic quick coupler to allow easy change of pin-on buckets and attachments with absolute safety.
Hydraulic quick coupler MultiFit "S"
Fully hydraulic reversible quick coupler.
SPECIFICATIONS
Compare Specifications
ENGINE | |||||||
Model | |||||||
Type | |||||||
Number of cylinders / Displacement (l) | |||||||
Emissions level | |||||||
Bore and stroke (mm) | |||||||
Rated flywheel horse power ISO 9249 (kW) | |||||||
Rated flywheel horse power ISO 14396 (kW) | |||||||
Maximum torque ISO 9249 (Nm) | |||||||
Maximum torque ISO 14396 (Nm) | |||||||
HYDRAULIC SYSTEM | |||||||
SWING | |||||||
FILTERS | |||||||
ELECTRICAL SYSTEM | |||||||
UNDERCARRIAGE | |||||||
NOISE | |||||||
CIRCUIT AND COMPONENT CAPACITIES | |||||||
